CSG-7410
CSG-7410
73.5 cc Cut-off Saw
SPECIFICATION
73.5 cc Cut-off Saw

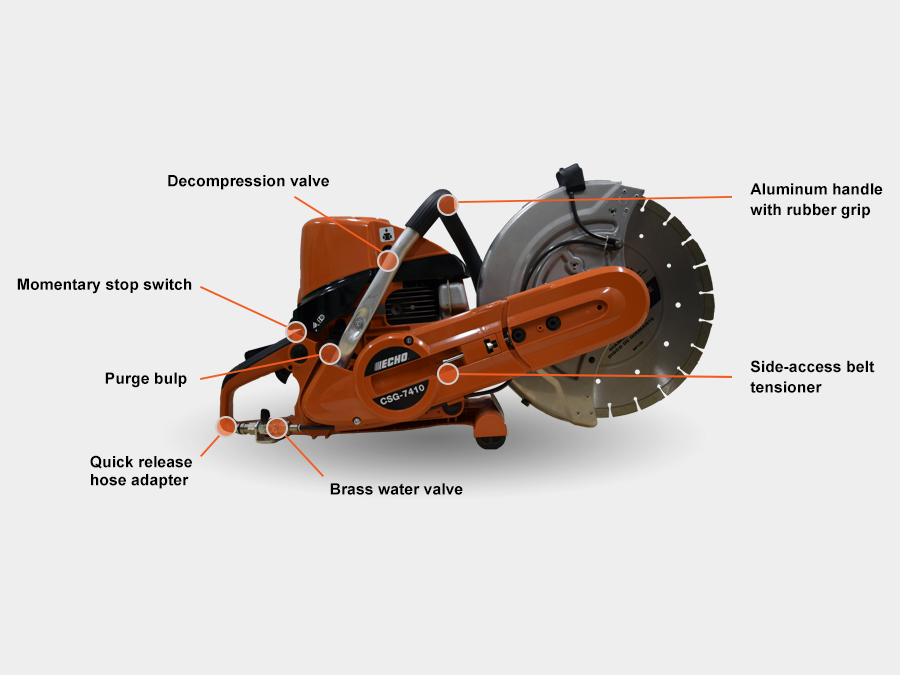

Easy cuts for hardscape pros. The best-in-class CSG-7410 cut-off saw features a high drive ratio for improved cutting through thick masonry blocks and dense concrete. Its durable, user-friendly design includes a four-stage air filtration system and a quick-release hose adapter.
TOP FEATURES
- Class-leading high-torque drive system
- Patented 4-stage air cleaner provides the engine with clean air for long life
- Easy starting system includes reduced effort starter and decompression valve
SPECIFICATION
| Engine Displacement (cc) | 73.5 |
| Max. Engine Speed (rpm) | 9,800 |
| Max. Spindle Speed (rpm) | 3,820 |
| Drive System Ratio | 2.6 |
| Arbor Size (mm) | 20 & 25.4 |
| Dry Weight (lbs) | 22.7 (10.3 kg) |
| Fuel Capacity (ml) | 701 (23.7 fl. oz.) |
| Wheel Diameter (in) | 14 |
| Start/Stop Switch | Momentary |
| Decompression Valve | Yes |
| Purge Bulb | Yes |
| Choke w/Fast Idle | Yes |
| Max. Cutting Depth (in) | 4.9 |
| Wheel Included | Abrasive |
| Warranty | 1 year commercial |
